Important Note: When a Lumin Smart Panel is first powered on after installation, all Lumin relays controlling circuits will open, cutting power to the controlled circuits. After the system has been configured using the Lumin Energy app, the relays will close and remain closed until a specified limit is reached (power demand is exceeded, battery state-of-charge falls below a setpoint, or a circuit schedule is activated).

This behavior is intentional. The Lumin Smart Panel can be used for service upsize avoidance; allowing more load on a panel than otherwise would be permitted by the electrical code. In order to prevent overcurrent on the service, the Lumin Smart Panel is designed to not allow power to pass until it is configured with a specific maximum current setpoint or set up for use in solar and storage energy management.

DO NOT energize the ReliaHome power breaker until you are ready to configure the system using the app. Controlled circuits will be unavailable between the time the power circuit is energized and the time when the system is configured. The smart panel will allow power to pass through on blue wires when first installed until the ReliaHome power circuit is energized.

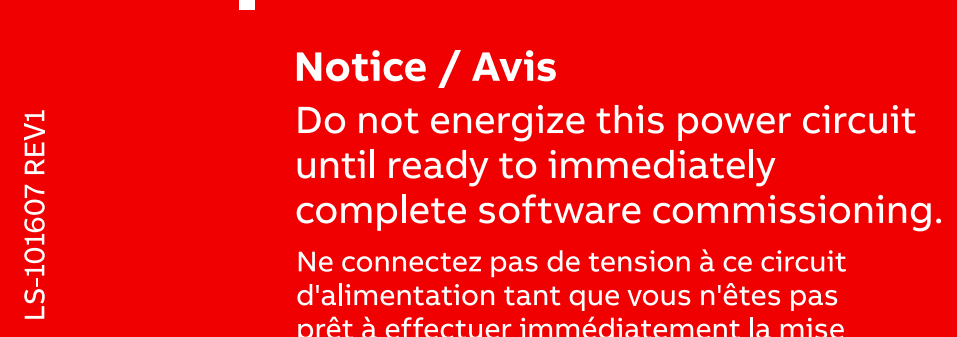

The following warning can be found on the Lumin power circuit wiring:


This does not apply to older versions of the Lumin Smart Panel that cannot support Panel Guard for service upsize avoidance. These smart panels, identifiable by the presence of a power switch, will keep relays closed at all times until a specified limit is reached during normal operation.

Reminder, installers must take certified installer training before installing this product: luminsmart.learnworlds.com
